WaveBox - Multi-models C++ numerical platform for water-waves equations

Keywords

DG · HDG · Saint-Venant · Boussinesq · Green-Naghdi · FV subcells

Stack

C++ · Python

Team

Fabien Marche lead · Sacha Cardonna · Arnaud Duran · Matthieu Rigal ···

WaveBox is a multi-models numerical platform initiated by Fabien Marche, dedicated to the approximations of the solutions of several shallow water asymptotics in the surface dimension d = 2 with efficient combined Hybridized Discontinuous Galerkin (HDG), Hybrid High Order (HHO), Monolithic DG/FV subcells and DG methods on general unstructured meshes (for Saint-Venant, Boussinesq and Green-Naghdi equations).

Main features are:

• Sub-models CPU-GPU co-processing;
• Arbitrary order of accuracy (h and p-adaptivity);
• Robust treatment of the run-up and flooding processes (strict maximum-principle enforcement);
• Well-balancing for motionless steady states;
• Unstructured meshes subdivision and ALE motion;
• Wave breaking treatment with dynamic switching strategy.

Numerical simulations •••

Choose a simulation

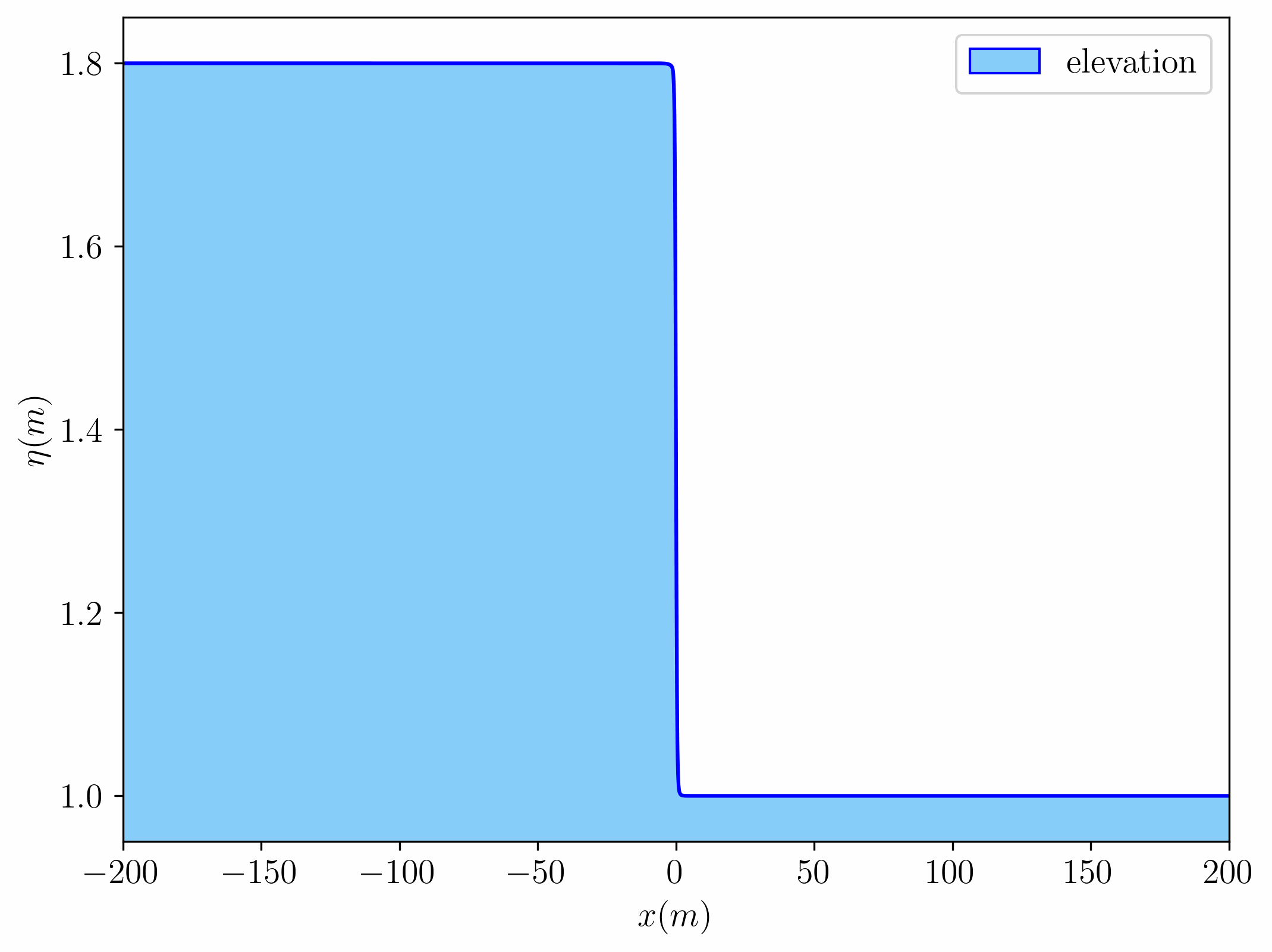

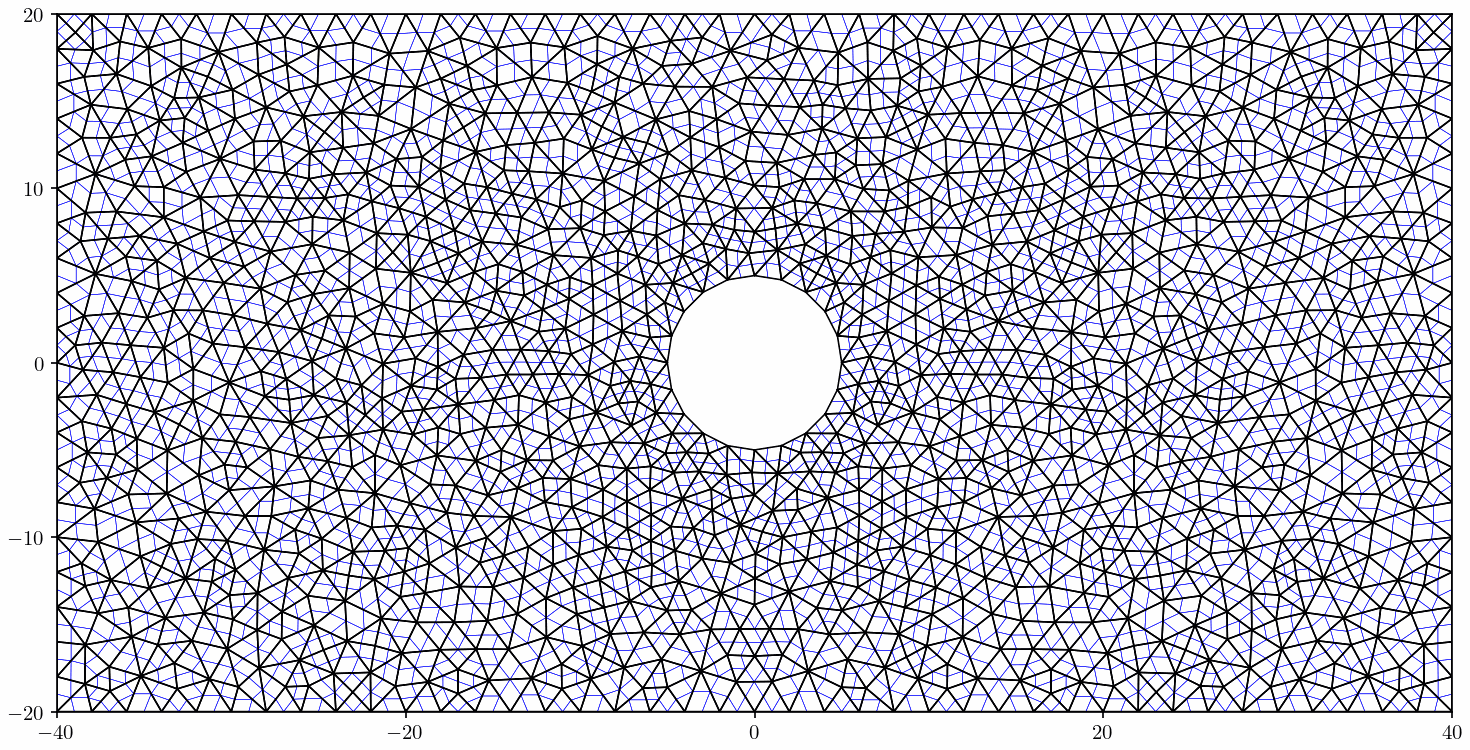

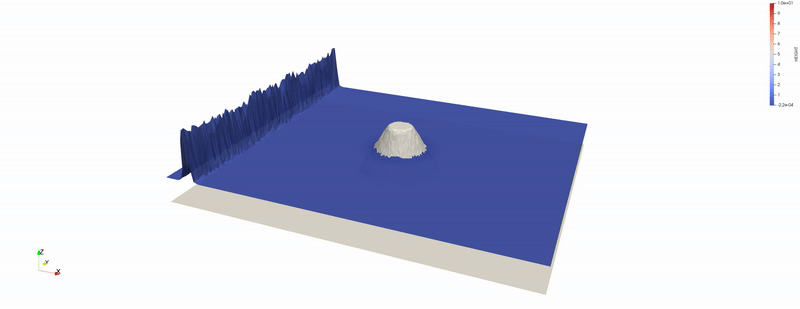

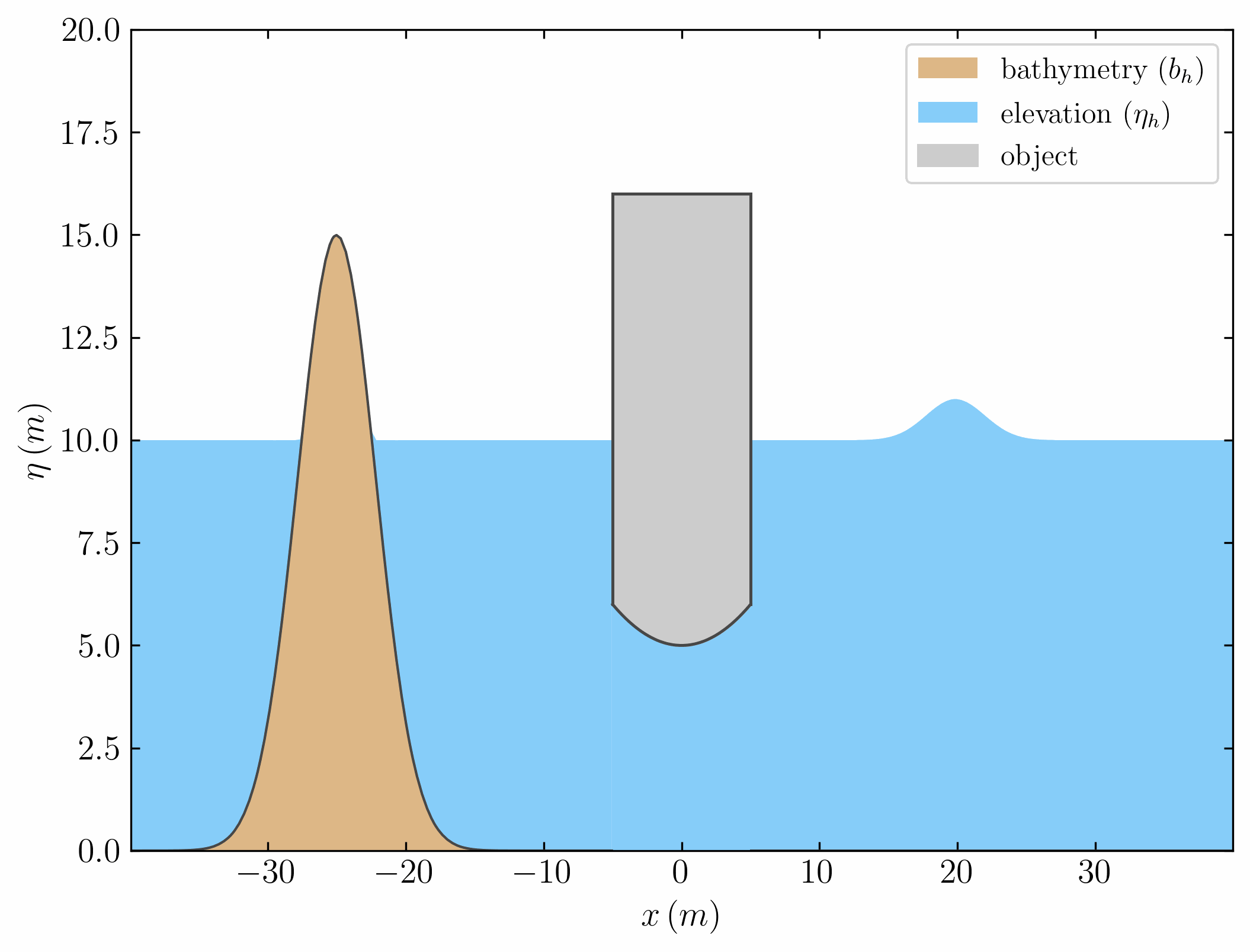

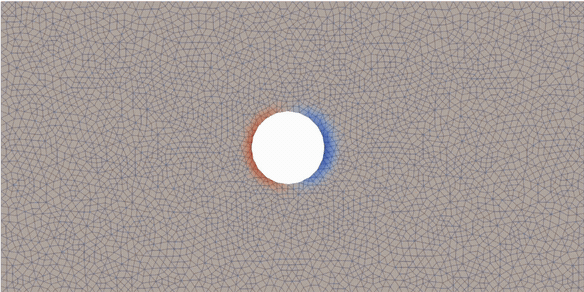

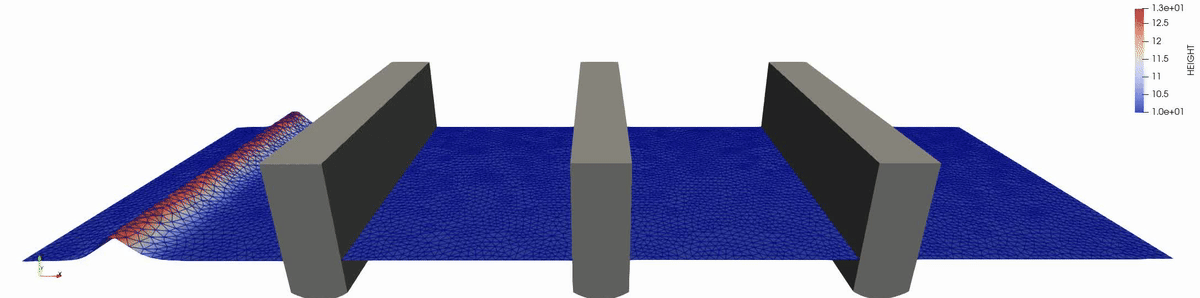

Mesh motion around an oscillating cylinder (laplacian smoothing) Mesh motion around an oscillating cylinder (pseudo-elasticity) Wave run-up generated by an impulsively stopped piston Periodic wave generation by an oscillating piston Translating and oscillating cylinder in shallow-water flow (1) Translating and oscillating cylinder in shallow-water flow (2) Collapsing wave interacting with a rock Tidal wave interacting with a rock (1) Tidal wave interacting with a rock (2) Dam-break on a wet bed Circular dam-break on a wet bed Carrier–Greenspan periodic solution Tsunami on three conical islands Single wave on a partly immersed stationary pontoon 2D wave generator Pontoon returning to equilibrium (upward) Pontoon returning to equilibrium (downward) Single wave on a freely moving pontoon Shock-wave on a freely moving pontoon Single wave on a partly immersed stationary cylinder Single wave on a stationary cylinder and a beach Green–Naghdi dam-break with dispersive shock 1D wave generator Wave interacting with a fixed object and topography

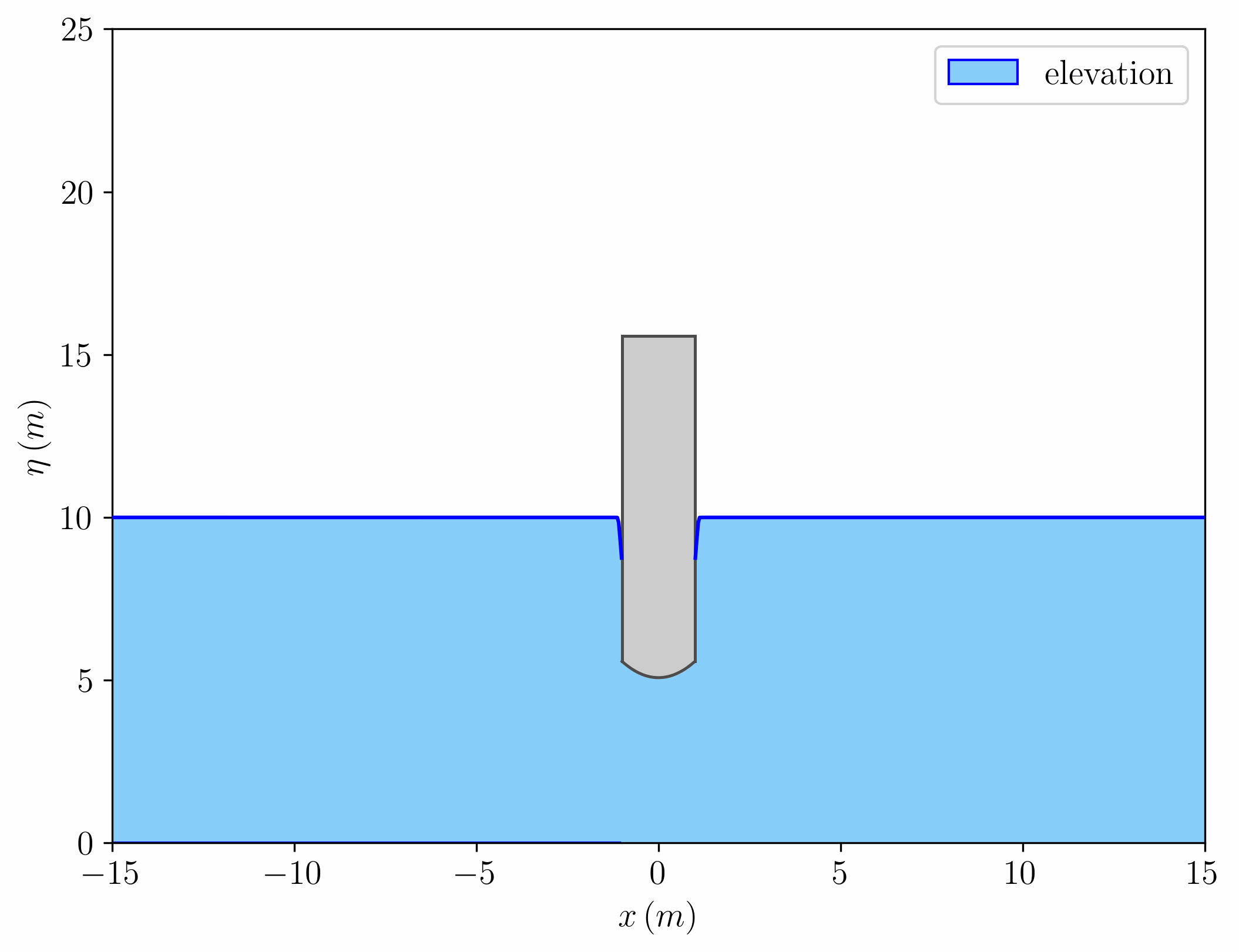

P⁵ · 2D Single wave on a freely moving pontoon

← →

ManicoreFV - Discontinuous Galerkin code for conservation laws on surfaces

Keywords

Discontinuous Galerkin · Finite volumes · Conservation laws · Surface PDEs · Curved meshes

Stack

C++ · Python

Team

Marien Hanot · Sacha Cardonna

ManicoreFV is a C++ plaform for the numerical approximation of conservation laws on curved surfaces using Discontinuous Galerkin and finite-volume methods. It is a fork of Manicore, the code developed by Marien Hanot for the implementation of numerical schemes on manifolds with general Riemannian metrics.

Main features are:

• Geometry-aware formulations based on the local charts, parametrizations and Riemannian metrics provided by the Manicore framework;
• High-order Discontinuous Galerkin discretizations of scalar conservation laws on curved surfaces, from piecewise-constant to high-order polynomial approximations;
• Explicit Runge--Kutta time integration with CFL-based time-step selection;
• Bound-preserving limiting for discontinuous solutions while maintaining local cell averages and global mass conservation.

Numerical simulations •••

Choose a simulation

Linear advection (crenel) - DG equatorial profile Linear advection (crenel) - Limited DG equatorial profile Linear advection (gaussian) - DG equatorial profile Shallow-water (circular dam-break wet) - Limited DG equatorial profile Shallow-water (circular dam-break dry) - Limited DG equatorial profile Linear advection (crenel) - DG solution Linear advection (crenel) - Limited DG solution Linear advection (gaussian) - DG solution Shallow-water (circular dam-break wet) - Limited DG solution Shallow-water (circular dam-break dry) - Limited DG solution

Equatorial slice · GIF Discontinuous Galerkin square profile

← →

Bfree — Structure-preserving finite-volume solver for ideal magnetohydrodynamics

Keywords

Magnetohydrodynamics · Divergence-free schemes · Finite volumes · Semi-implicit methods · ALE

Stack

Fortran · Python

Team

Walter Boscheri lead · Mattia Lupi · Elena Bernardelli · Lidia Gude Vila · Sacha Cardonna

Bfree is a research-oriented numerical platform for the simulation of two-dimensional ideal magnetohydrodynamics and Euler–Heat flows. Its main purpose is to design structure-preserving finite-volume methods that maintain fundamental differential constraints at the discrete level: the divergence-free condition of the magnetic field for ideal MHD and the curl-free condition of the thermal impulse for the Euler–Heat model.

Main features are:

• Divergence-free discretizations for the magnetic field in ideal MHD;
• Curl-free discretizations for the thermal impulse in the Euler–Heat system;
• Explicit Arbitrary Lagrangian–Eulerian (ALE) finite-volume schemes on moving meshes;
• Semi-implicit finite-volume schemes for low Mach and low Alfvén number regimes;
• Structure-preserving evolution of the discrete differential constraints;
• First- and second-order accurate spatial discretizations;
• Conservative monitoring of mass and total energy.

ShoreVPINN - Variational physics-informed neural solver for shallow-water flows

Keywords

Variational PINNs · Saint-Venant equations · Wet-dry interfaces · Wave run-up

Stack

Python · PyTorch

Team

Ali Haidar · Sacha Cardonna

ShoreVPINN is a research-oriented Python code exploring Variational Physics-Informed Neural Networks (VPINNs) for the approximation of the one-dimensional nonlinear shallow-water, or Saint-Venant, equations. Instead of relying exclusively on pointwise evaluations of the governing equations, the physical residuals are integrated against local test functions over a spatial mesh. This weak formulation is particularly well suited to flows involving variable topography and moving wet-dry interfaces.

Main features are:

• Variational enforcement of the mass and momentum equations using local finite-element test functions;
• Exact preservation of the initial condition through a hard-constrained neural ansatz;
• Positivity-preserving treatment of the water depth;
• Robust formulation of the momentum flux near wet-dry interfaces;
• Non-uniform spatial meshes with optional local refinement in the run-up region;
• Gauss-Legendre quadrature and stochastic batching over time slices;
• Automatic execution on CPU, CUDA GPUs and Apple Silicon GPUs.

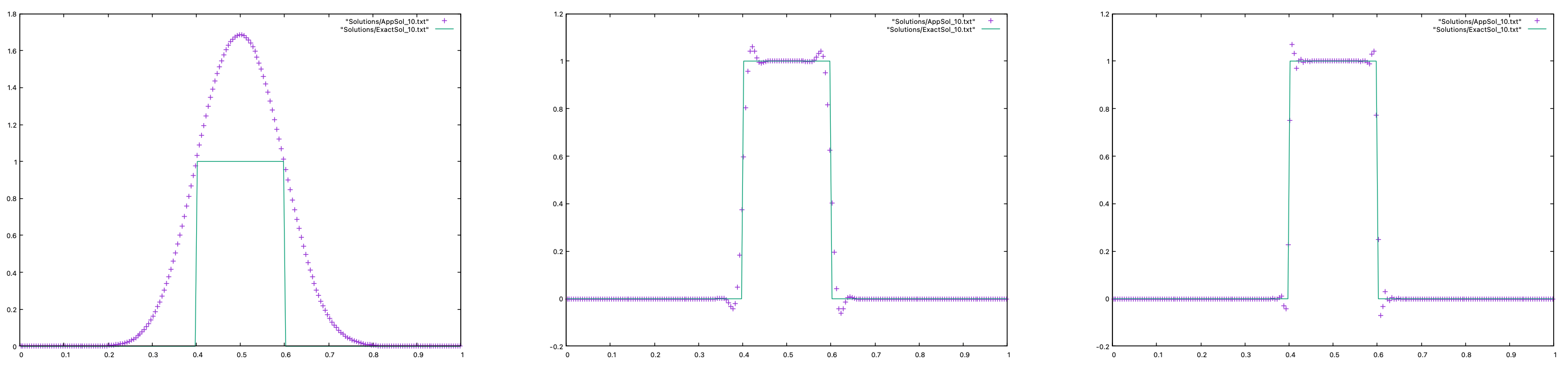

DG4SCL - Compact and student friendly code for DG methods on 1D SCL

Keywords

Discontinuous Galerkin · Scalar conservation laws

Stack

C++ · Python

Developer

Sacha Cardonna

During the early stages of my internship with F. Vilar and F. Marche, I embarked on the development of a compact C++ code focused on addressing Discontinuous Galerkin (DG) schemes for 1D conservation laws.

This code is a work in progress, far from being complete or flawless. Its creation was driven by my commitment to simplicity and understandability. I strived to ensure that the code's structure and implementation were as straightforward as possible, enabling users to grasp the underlying concepts with ease.

By expanding its functionality and making it more comprehensive, I aim to create a valuable resource for students seeking a simplified example of DG schemes. This endeavor stems from my own experiences as a student, where access to such a resource would have greatly facilitated my understanding and learning process.

Contact me to get the source.
